Sunlite UV LED Adhesive Curing Unit
UV cure adhesive products are used in the production of circuit board, glassware, glass furniture, acrylic glass, for the optical industry and medical field.

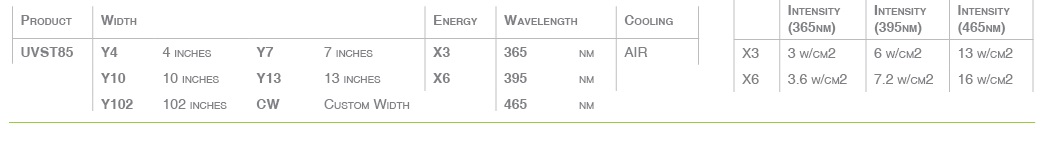

Sunlite’s UVST85 Series
Features of Sunlite’s UVST85 LED Curing Units
- Operating lifetime of 20,000+ hours
- Instantaneous on/off and dimming capabilities
- Can be either an air-cooled or water-cooled system
- Environmentally friendly (does not contain mercury)
- Fixture length is scalable from 5 to 102 inches (or more)
- Does not produce ozone (or require an exhaust fan to remove ozone)
- Energy Efficient (80% less power consumption than other traditional fixtures)
- Can be automatically controlled to turn on only when the printing unit is in operation

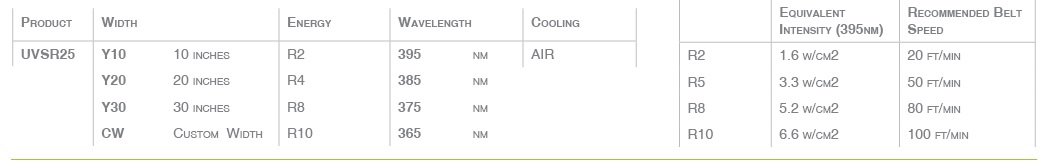

UVSR25 Series
UVSR25 LED Curing Unit Product Specs
Features of Sunlite’s UVSR25 LED Curing Units
- Air-cooled
- Life Span of over 20,000 hours
- Instantaneous on/off and dimming capabilities
- Equivalent power intensity up to 6.6 Watts/cm2
- Environmentally friendly (do not contain mercury)
- Fixture length is scalable from 5 to 102 inches (or more)
- Do not produce ozone (or require an exhaust fan to remove ozone)
- Energy Efficient (80% less power consumption than other traditional fixtures)
- Can be automatically controlled to turn on only when the printing unit is in operation
Sunlite’s UVSR25 Spot Curing Unit
From Lens: Intensity 5.8W/cm2 (395nm)
@Diameter:1.5 inch: Intensity 2.4W/cm2 (395nm)
Customized Designs!
Contact us at (785) 856-0219 for more details
