ST30 and ST40 Linear fixtures have been used by designers and architects in various green wall projects across the world. SST’s patented LED technology provides an effective, cost-efficient, and attractive means to grow healthy and vibrant green wall plants. SST’s ST30 and ST40 Greenwall Strip light both provide excellent lighting coverage for the entire wall. The two fixtures consume the same wattage, emit the same light output, and provide the same coverage.
SST’s High Power ST30 Strip light is 1.25″ in thickness and 1.25″ in width. Length options available include 12″, 24″, 36″, 48″, and 96″. The ST30 can be mounted to the ceiling using metal pivots. The High Power ST30 Strip light is available in silver or black. The strip has a built-in channel for running wires.

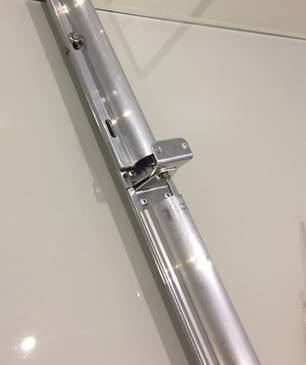

SST’s ST40 Strip lights are only 0.4″ in thickness and 1.6″ in width. The length is available in 24″, 36″, and 48″. The ST40 can be hung or mounted to a surface using swivel endcaps or metal pivots. The aluminum channel mount mounted to the back hides the wires and covers the back. The channel mount is not anodized. Two ST40 Strips can also be linked using metal pivot brackets.
Edible Herb Wall

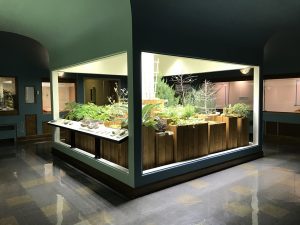

Museum Exhibit

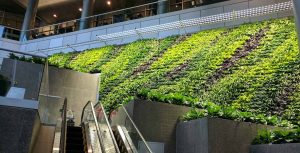

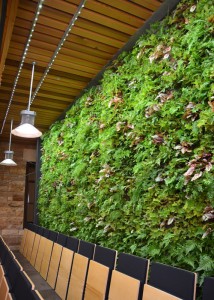

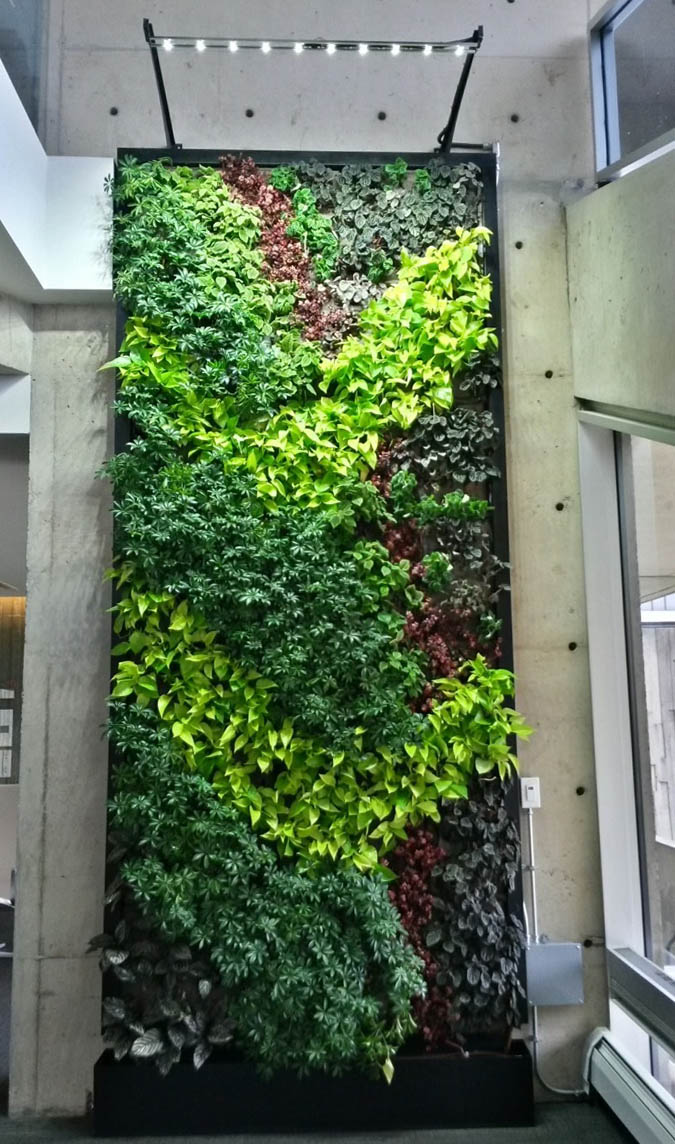

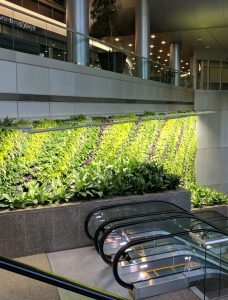

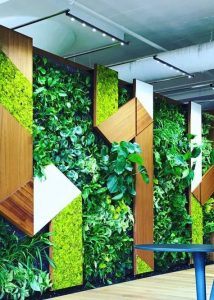

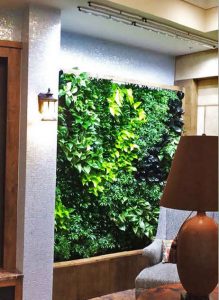

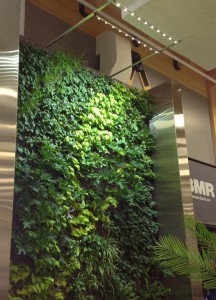

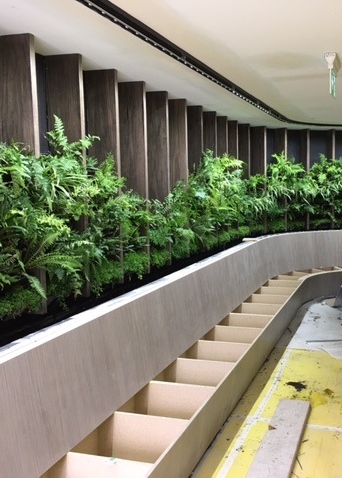

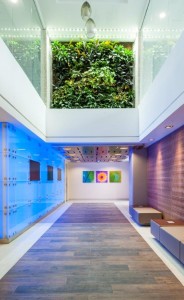

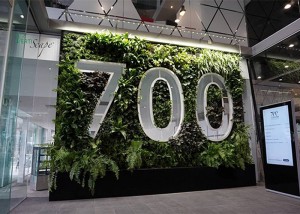

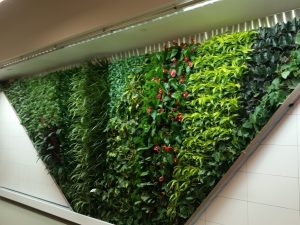

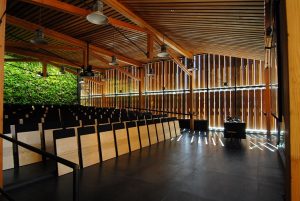

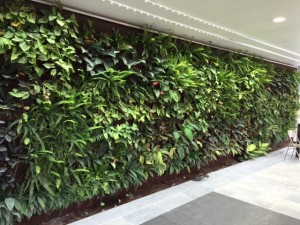

Sample SST Green Wall Projects
Existing Green Wall Re-Lamp
Envirozone Rock Wall Projects
Recommended Layouts
Sample Layouts for Green Wall with SST’s LED Fixtures
Green wall lighting designs depend upon the height and width of the wall, as well as the lighting level required. Lighting levels for plants can be measured in foot candles (fc) or photosynthetically active radiation (PAR). Sample layouts for a 12′ wide green wall are listed below. Wider walls will need higher light output.
12′ H X 12′ W:
Total of 6 fixtures: two rows of ST40 fixtures placed on the ceiling (angled 30 degree) provides a minimum light output of 90 footcandles and an average of 230 footcandles.
22′ H X12′ W:
Total of 9 fixtures: two rows of ST40 fixtures placed on the ceiling (angled 25 degree) and one row of ST40 fixtures placed on the floor (angled 35 degree) provides a minimum light output of 90 footcandles and an average of 215 footcandles.
22′ H X12′ W:
Total of 12 fixtures: four rows of ST40 fixtures placed on the ceiling (angled 20 degree) to provide a minimum light output of 80 footcandles and an average of 205 footcandles.
32′ H X12′ W:
Total of 12 fixtures: two rows of ST40 fixtures placed on the ceiling (angled 25 degree) and two rows of ST40 fixtures placed on the floor (angled 30 degree) to provide a minimum light output of 86 footcandles and an average of 186 footcandles.
